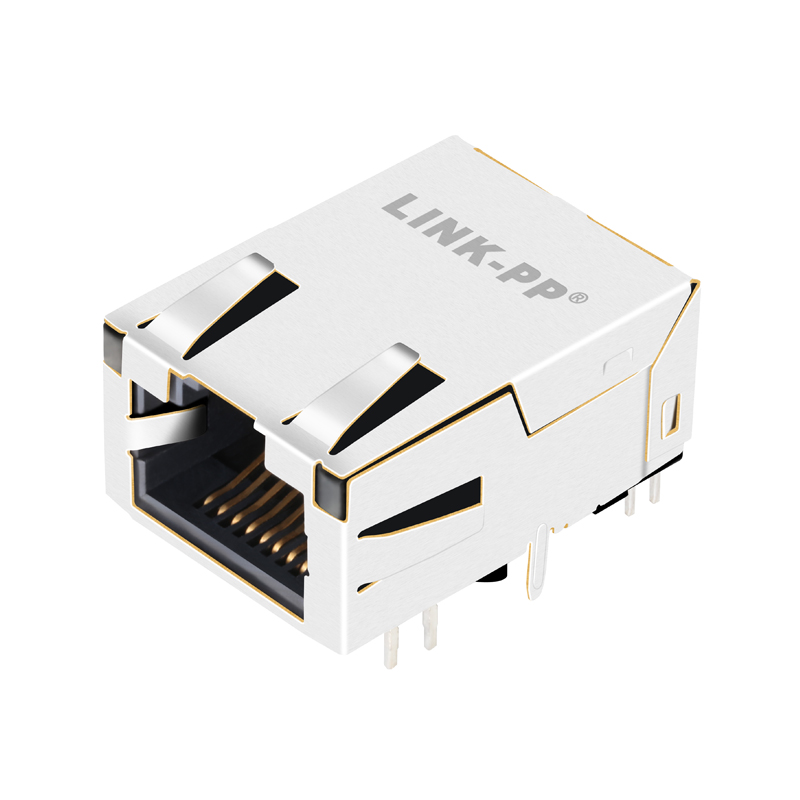

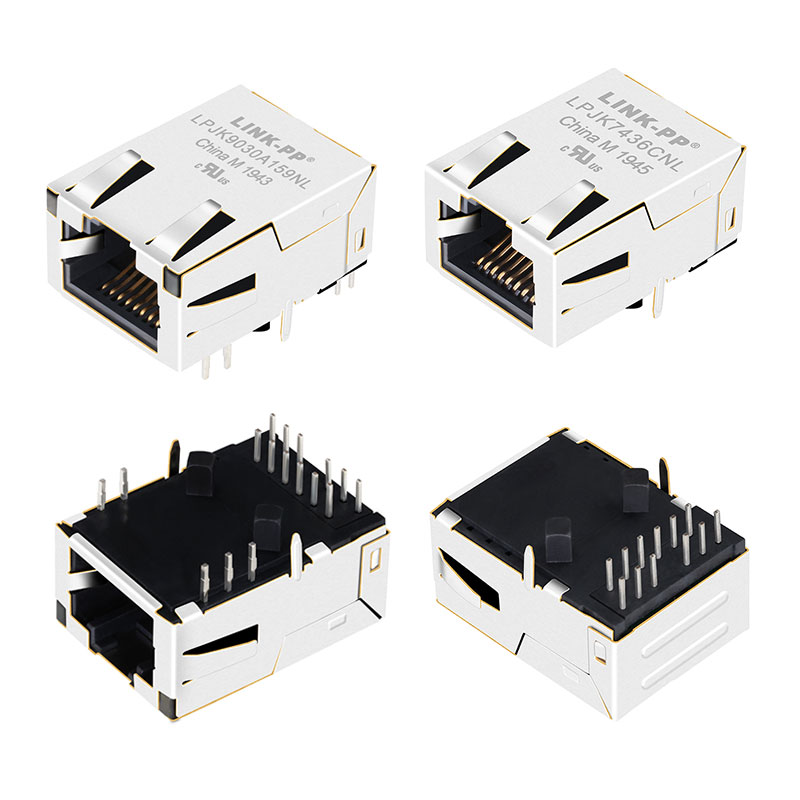

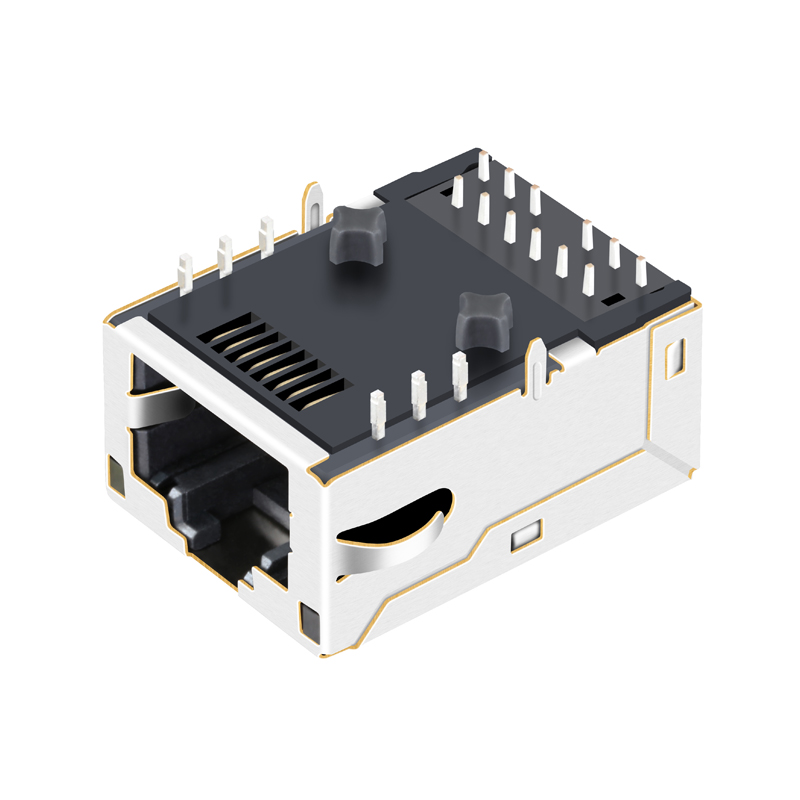

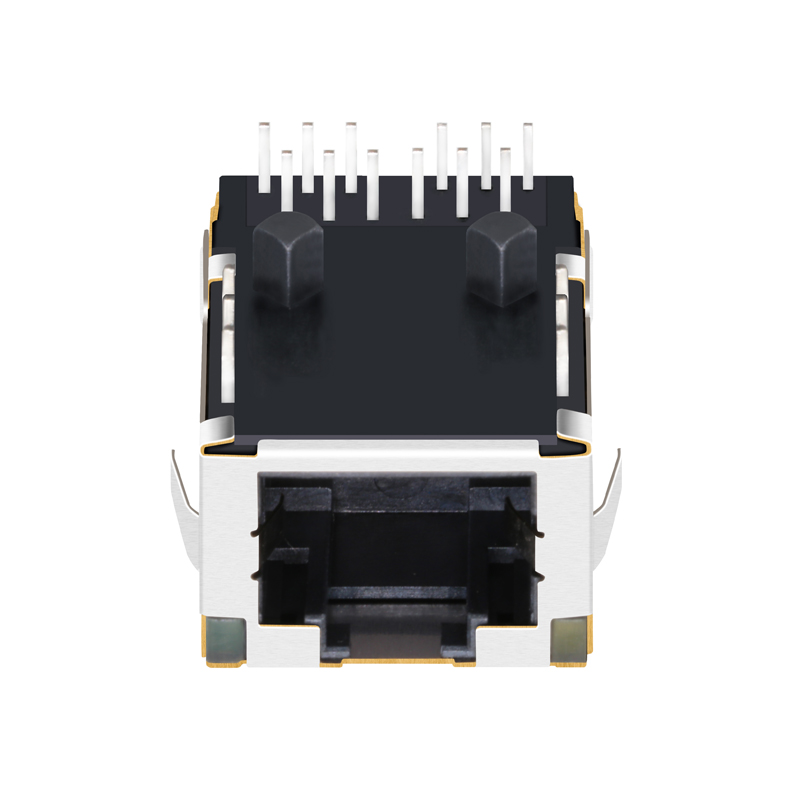

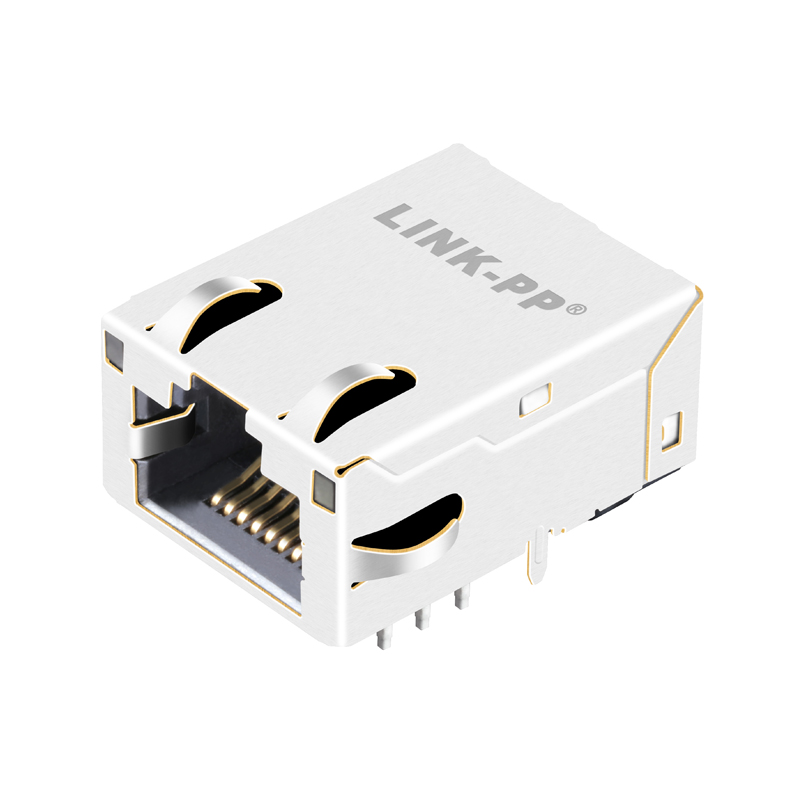

100/1000/2.5G/5G/10G Base-T Shielded 10p8c 8p8c Right Angle Low Profile PCB Integrated Magnetics Network RJ45 Female Connector
100/1000/2.5G/5G/10G Base-T Shielded 10p8c 8p8c Right Angle Low Profile PCB Integrated Magnetics Network RJ45 Female Connector
100/1000/2.5G/5G/10G Base-T Shielded 10p8c 8p8c Right Angle Low Profile PCB Integrated Magnetics Network RJ45 Female Connector
100/1000/2.5G/5G/10G Base-T Shielded 10p8c 8p8c Right Angle Low Profile PCB Integrated Magnetics Network RJ45 Female Connector
100/1000/2.5G/5G/10G Base-T Shielded 10p8c 8p8c Right Angle Low Profile PCB Integrated Magnetics Network RJ45 Female Connector
1 / 5
100/1000/2.5G/5G/10G Base-T Shielded 10p8c 8p8c Right Angle Low Profile PCB Integrated Magnetics Network RJ45 Female Connector
100/1000/2.5G/5G/10G Base-T Shielded 10p8c 8p8c Right Angle Low Profile PCB Integrated Magnetics Network RJ45 Female Connector
100/1000/2.5G/5G/10G Base-T Shielded 10p8c 8p8c Right Angle Low Profile PCB Integrated Magnetics Network RJ45 Female Connector
100/1000/2.5G/5G/10G Base-T Shielded 10p8c 8p8c Right Angle Low Profile PCB Integrated Magnetics Network RJ45 Female Connector
100/1000/2.5G/5G/10G Base-T Shielded 10p8c 8p8c Right Angle Low Profile PCB Integrated Magnetics Network RJ45 Female Connector

100/1000/2.5G/5G/10G Base-T Shielded 10p8c 8p8c Right Angle Low Profile PCB Integrated Magnetics Network RJ45 Female Connector

Send Inquiry

Product Description

⚙️ Product Specifications

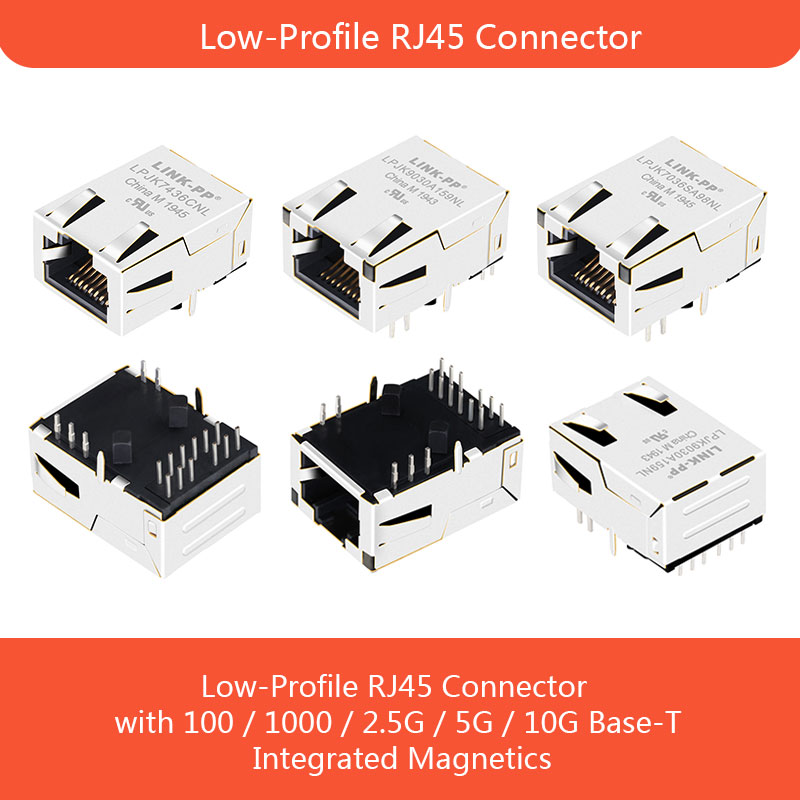

RJ45 Connector Characteristics
Key Characteristics
✔ RJ45 Connector with integrated transformer / common mode choke
✔ Power over Ethernet up to 50 Watt and speeds up to 10 Gbit/s
✔ Available in SMT, THT and THT with USB
✔ Compliant with IEEE 802.3u, 802.3ab, 802.3af, 802.3at and 802.3bt
✔ Improved Common Mode Rejection due to additional NiZn cores
Model NumberLow profile rj45 jack
Part StatusActive
Connector TypeRJ45
Applications-LanEthernet (PoE / Non-PoE)
Speed10/100/1000/2.5G/5G/10G Base-T, AutoMDIX
Mounting TypeThrough Hole
Orientation90° Angle (Right)
TerminationSolder
Contact Finish Thickness6.00µin (0.152µm)
LED ColorYellow/Green, Green/Yellow, Green&Yellow/Green&Yellow
Number of Cores per Jack4/6/8/12
ShieldingShielded, Emi Finger
Number of PortsSingle Port
FeaturesBoard Guide
Tab DirectionDown/Up
Contact FinishGold
Configuration RX/TXT, C
Turns Ratio RX/TX1CT:1CT
Operating Temperature0°C ~ 70°C / -40°C ~ +85°C
📦 Packing & Delivery

Package Details: Tray Packing

Carton Size: 40*32*33cm

Quantity: 1200pcs/carton (SPQ: 50pcs)

Weight: G.W: 12.3kg / N.W: 0.01kg per piece

Packaging
🖼️ Product Showcase
RJ45 Image 1
RJ45 Image 2
RJ45 Image 3
Technical Drawing 1
Technical Drawing 2
Production Process
Quality Inspection
Frequently Asked Questions
What are the main products available?
We provide high-quality RJ45 Magnetic connectors, LAN transformers, RJ11 Connectors, and various SFP modules designed for high-speed networking.
How is the quality of the connectors guaranteed?
Quality is ensured through a rigorous process: always providing a pre-production sample before mass production and conducting a final 100% inspection before shipment.
Does the RJ45 jack support PoE applications?
Yes, our RJ45 connectors support Power over Ethernet (PoE) up to 50 Watts and are compliant with IEEE 802.3af/at/bt standards.
What transmission speeds are supported?
The connectors support a wide range of speeds including 10/100/1000 Base-T, as well as 2.5G, 5G, and up to 10G Base-T with AutoMDIX.
What are the available operating temperature ranges?
We offer both standard commercial grade (0°C ~ 70°C) and industrial grade (-40°C ~ +85°C) components to suit different environmental requirements.
Are the products compliant with international standards?
Yes, our products are manufactured to meet global standards including SGS, ISO9001:2008, UL, REACH, and CE certifications.
